FT-7800R Programming Lead (CI-V adapter lead)

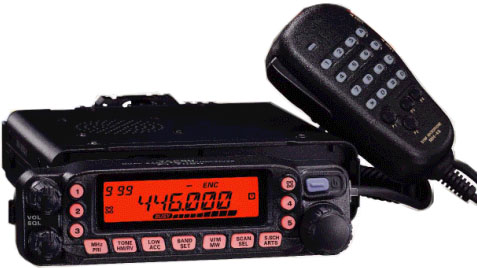

Yaesu FT-7800RThis article also applies to: Yaesu FT-7800, FT-7900, FT-8100, FT-8800, and FT-8900

Having just recently acquired a pair of Yaesu FT-7800R VHF/UHF Twinband transceivers, a programming cable was now needed.

Only after a few minutes searching, and we find warnings about the non-genuine USB programming leads out of China. These leads are cheap, but.

Some Chinese cables are based on a knock-off version of the Prolific PL2303 chipset, and you’ll find they become inoperable with the latest Prolific drivers… which can be a trap if your PC does automatic updates.

Click for full-size

Click for full-size

Prolific do this deliberately, so that their drivers cannot be used with the Chinese knock-off hardware – I don’t blame them!

To avoid potential problems, a better alternative is a programming cable based on the SiLabs CP2102 chipset, and these can be obtained from TechnoFix UK on eBay.

However!

After a bit more research, it was discovered that the Yaesu serial programming arrangement for an FT-7800R (and FT-7900, FT-8100, FT-8800, and FT-8900) was a 2-wire interface, with RX and TX data on a common wire.

Sound familiar?

Yes, the same arrangement as an ICOM CI-V interface cable.

Click for full-size

Click for full-size

If you already have an ICOM CI-V cable, why waste money on another complete cable, much the same?

All that’s required is a 3.5mm plug to a 6-pin Mini DIN plug adapter.

What’s needed:

——–
$3.95


Click for full-size

Click for full-size


As luck would have it, a 3.5mm mono socket already attached to a convenient length of audio cable was on hand… so bonus!

You probably have some of this in the parts drawers anyway, along with some heat shrink.



To improve strain relief, three layers of heat shrink was applied to the 6-Pin Mini DIN end of the cable. With this, the outer shell of the Mini DIN plug is a nice firm fit.

With strain relief taken care of, the 6-Pin Mini DIN plug can now be soldered to the cable.


Click for full-size

Click for full-size


I find it a lot easy to solder to connectors like this, if they sit in the jaws of bull-nose pliers.


No clamping pressure is required… they just sit in the jaws, rather than moving around the bench, as you are trying to solder to them!




6-Pin Mini DIN Pin-out

The bi-directional data line is connected to pin 3 of the mini DIN plug.

In the Service Manual, pin 3 is referred to as the PKS/Clone line, but it’s also the PTT line, so don’t be confused with this.

Click for full-size

Click for full-size

The data connection is to pin 3.


Note that the diagram is looking towards the rear of the FT-7800R, and the rear of the plug, as if it were about to plug into the data socket.




Making this adapter lead is literally a 5 minute job.





Click for full-size

Click for full-size


The finished adapter lead looks like this.


For $4, an ICOM CI-V programming lead now becomes dual-purpose!



Programming Software

Initially I tried the free “CHIRP” programme.

You get what you pay for.

(Lazy tight-asses can find it themselves!)

CHIRP tries to be a do-all programme for many different models of radios, and whilst admirable, that’s also it’s biggest failing.

Click for full-size (image: http://www.g4hfq.co.uk)

Click for full-size (image from: http://www.g4hfq.co.uk)

CHIRP is clumsy to use, and it becomes a very slow process to set up many memory channels with offsets and CTCSS settings, etc… to the point of searching for better alternatives.

An excellent programme is “FTB7800” from G4HFQ.

A trial version can be downloaded, to try out.

You cannot write to the radio with the trial version, but you can build your setup, and save it (to your HDD) to be recalled later. It only takes a few minutes to see how quick and easy it is to set up memory channels.

Being specifically for the FT-7800R (in this case), we can also setup FT-7800R specific parameters, something CHIRP did not do.

Using the up down navigation on your keyboard (rather than the mouse), and you can fly thru your setup.
Set the frequencies in the first column, then set up the other parameters in the other columns.
Work down the columns – it’s much quicker than across a row!

Click for full-size

Click for full-size

In less than 10 minutes, it was decided that the modest registration fee of USD$15 was definitely worth it.

Payment via PayPal, and registration details were immediately presented upon successful check out – no mucking around.

The $30+ saved on not having to buy a dedicated FT-7800R programming lead paid for the FTB7800 software, and left $13 in change.

Also, FTB7800 is a lot faster than CHIRP when reading/writing to the radio.

For FT-7800R owners, G4HFQ’s FTB7800 is highly recommended.
